1000BASE -T SFP Copper 100m Transceiver Module

Features

• Up to 1.25Gb/s bi-directional data links
• Compliant with IEEE 802.3z, IEEE 802.3u, IEEE 802.3ab
• Compliant with SFP MSA
• Hot-pluggable SFP footprint
• Support 10/100/1000BASE-T operation in host systems with SGMII interface
• RJ-45 connector
• Auto-sense MDI/MDIX
• Single power supply 3.3V
• RoHS Compliant
• Operating case temperature: 0~+70°C

Applications

• 1.25 Gigabit Ethernet

Standards

• IEEE 802.3z
• IEEE 802.3u
• IEEE 802.3ab
• SFP MSA

Ordering information

Description

• MU1D-0XT3 is a small, hot-swappable RJ45 electrical port module, compliant with Gigabit Ethernet standards and SFP Multi-Source Agreement (MSA) standards,supporting 10M/100M/ 1000M transmission rate. CAT5 class network cable transmission distance of up to 100 meters, good electromagnetic compatibility, compatible with various brands of hosts, widely used in data centers and enterprise networks. Access to the PHY chip registers is via the I2C interface. It supports 1000BASE-X auto-negotiation, supports the LINK status via the RX_LOS pin, and supports hosts with SGMII functionality. Meet the certification requirements such as RoHS.

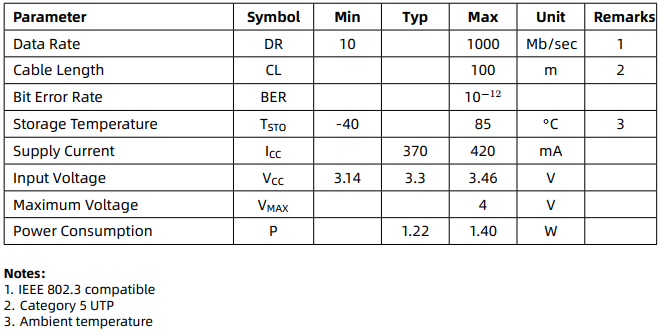

General Specifications
