100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module

Name: 100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module
Brand: Optowix
Price: 1 USD

Quality 100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module for sale

Brand Name : Optowix

Model Number : MK1Q-13TA

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 10Kpcs

Delivery Time : 5-8 working days

Packaging Details : ESD plastic case

Optowix PN : MK1Q-13TA

Product Name : 100Gbps QSFP28 Transceiver, Single Mode, 10km Reach,Module

SpeedRate : 100G

Distrance : 10km

Interface : duplex LC

Wavelength : 1310nm

Environment : 0ºC ~ 70ºC

Contact Now

100Gbps QSFP28 Transceiver, Single Mode, 10km Reach

Features

Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rates
Maximum link length of 10km on Single Mode Fiber (SMF)
Power dissipation < 3.5W
Built-in digital diagnostic functions
Built-in CDR
4x25.78Gb/s DFB-based LAN-WDM transmitter
Duplex LC receptacles
Single 3.3V power supply
RoHS compliant
Operating case temperature: 0~+70°C

Applications

100GBASE-LR4 100G Etherne

Standards

QSFP28 MSA
IEEE 802.3ba

Ordering Information

Part Number

Product Description

MK1Q-13TA

100G QSFP28 1310nm 10km, 0°C~+70°C

Description

MK1Q-13TA is 100Gb/s QSFP28 LR4 transceiver. It is compliant with the QSFP28 MSA and IEEE 802.3ba. QSFP28 LR4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber.

Absolute Maximum Ratings

100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module

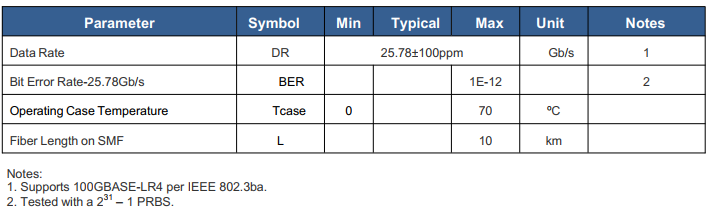

Recommended Operating Conditions

100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module

Electrical Specification

100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module

Optical Specification

100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module

100G QSFP28 1310nm 10km Transceiver Fiber Optic Transceiver Module Images
