100G QSFP28 ER4 Lite 1310nm 30km Transceiver Fiber Optic Transceiver Module

Name: 100G QSFP28 ER4 Lite 1310nm 30km Transceiver Fiber Optic Transceiver Module
Brand: Optowix
Price: 1 USD

Quality 100G QSFP28 ER4 Lite 1310nm 30km Transceiver Fiber Optic Transceiver Module for sale

Brand Name : Optowix

Model Number : MK1Q-ERTD

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 10Kpcs

Delivery Time : 5-8 working days

Packaging Details : ESD plastic case

Optowix PN : MK1Q-ERTD

Product Name : 100G QSFP28 Transceiver, Single Mode, 30km Reach,Module

SpeedRate : 100G

Distrance : 30km

Interface : Duplex LC

Environment : 0°C~+70°C

Contact Now

100Gbps QSFP28 Transceiver, Single Mode, 30km Reach

Features

Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s aggregate bit rates
Maximum link length of 30km on Single Mode Fiber (SMF)
Power dissipation < 5W
Built-in digital diagnostic functions
Built-in CDR
4x25.78Gb/s DFB-based LAN-WDM transmitter
Duplex LC receptacles
Single 3.3V power supply
RoHS compliant
Operating case temperature: 0~+70°C

Applications

100GBASE-ER4 100G Ethernet
100GE 4WDM-30 Applications

Standards

QSFP28 MSA
IEEE 802.3ba

Ordering Information

Part Number

Product Description

MK1Q-ERTD

100G QSFP28 ER4 LC 30km, 0°C~+70°C

Description

MK1Q-LRTC is 100Gb/s QSFP28 ER4 transceiver. It is compliant with the QSFP28 MSA and IEEE 802.3ba. QSFP28 ER4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber.

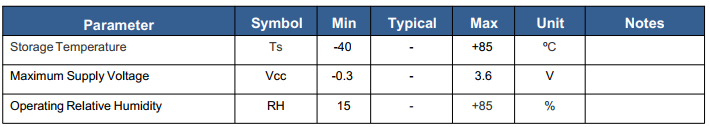

Absolute Maximum Ratings

Module performance is not guaranteed beyond the operating range.

Exceeding the limits below may damage the transceiver module permanently.

100G QSFP28 ER4 Lite 1310nm 30km Transceiver Fiber Optic Transceiver Module

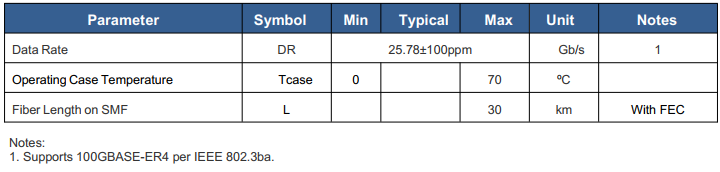

Recommended Operating Condition

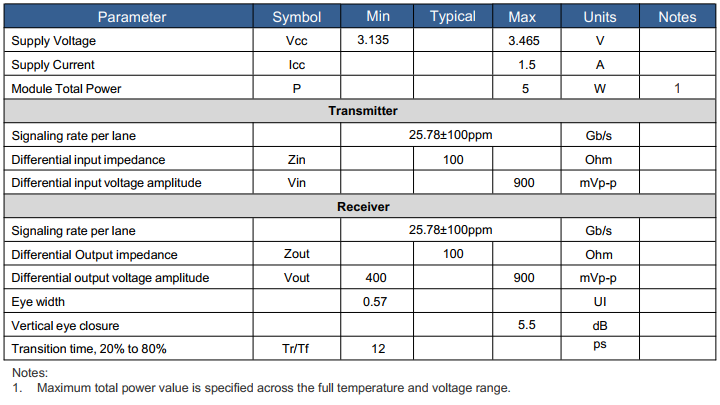

Electrical Specification

100G QSFP28 ER4 Lite 1310nm 30km Transceiver Fiber Optic Transceiver Module

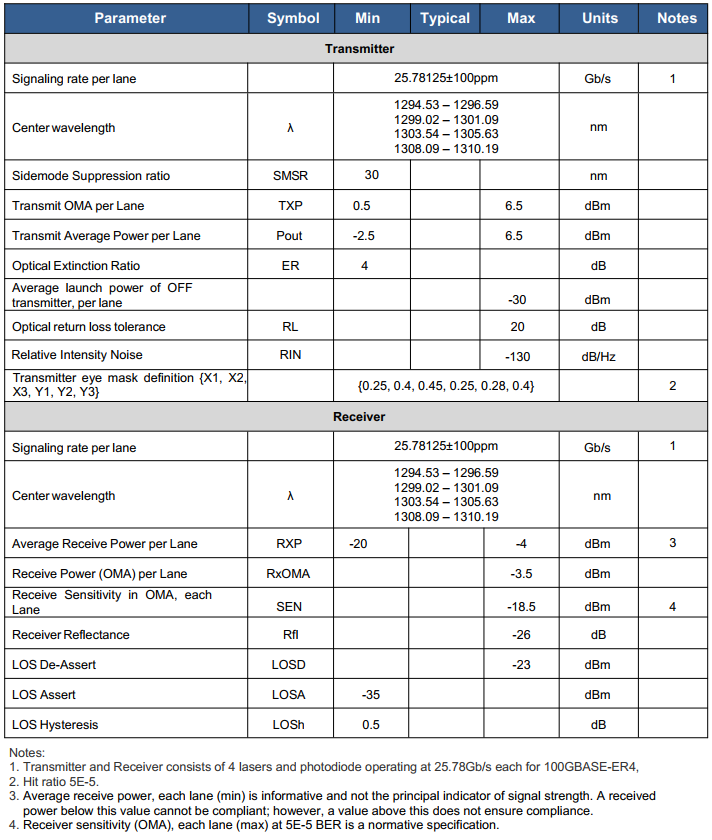

Optical Specification

100G QSFP28 ER4 Lite 1310nm 30km Transceiver Fiber Optic Transceiver Module
